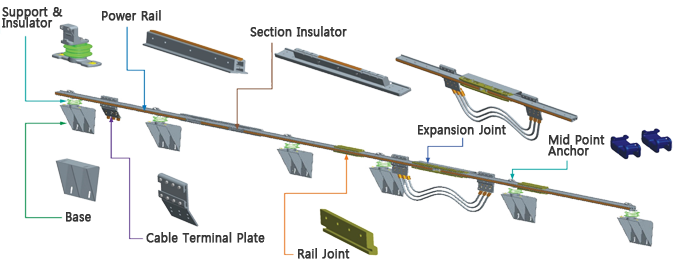

[Material & Shape]
Composition : AL Flame + Cu
Size : 82.1(H) X 80(W) X 10000(L)
Square : AL 2.546㎟, Cu 275㎟
Weight : 10 kg/m
[Electrical Characteristic]
Total Resistance (Before Wear) : RAC 0.01087 / RT 0.02174 [Ω/Km]
Total Resistance (After Wear) : RAC 0.01176 / RT 0.02354 [Ω/Km]
Permissible Current : 3800A (After Wear : 3500A)
[Mechanical Charateristic]
Coefficient of Thermal Expansion (AL) : 20 X 10-6/℃
Coefficient of Thermal Expansion (Cu) : 16.44 X 10-6/℃
Moment of Inertia (mm) : INERTIA TENSOR : Ixx 5.7520544e+06, Iyy 1.0015794e+06
[Material & Shape]
Composition : Base + Insulator + Claw
Size : 335(W) X 175(D) X 257(H)
Material : Cast Iron + Epoxy
Weight : 8.4 kg
[Electrical Characteristic]
Creeping Distance : 235 mm
Safety Distance : 100 mm
Power Frequency Withstand Voltage (Dry) : 40 kV
Light Impulse Withstand Voltage (Dry) : 75 kV
[Mechanical Charateristic]
Bending Breaking Load : 2,000 kgf
Tension Breaking Load : 2,500 kgf
[Shape and Surface Stress of Epoxy Insulator]
[Material & Shape]
Composition : Power Rail + Sliding Bar + Cable Plate + Cable
Size : 3000(W) X 152(D) X 638(H)
Material : AL + Cu + Brass + Cable
Weight : 255 kg
[Electrical Characteristic]
Permissible Current : 3800 A
Short Circuit Current : 100 kA/1s
[Mechanical Charateristic]
Coefficient of Thermal Expansion (AL) : 20 X 10-6/℃
Coefficient of Thermal Expansion (Cu) : 16.44 X 10-6/℃
Max Permissible Temp : 95 ℃
Max Gap : 232 mm
Expansion Joint is installed with Max. 120m interval and the Gap is modified at surface temperature of the Power Rail
[Material & Shape]
Composition : FRP Section Block + FRP Section Joint Plate
Size : 490(W) X 80(D) X 82(H)
Size : 400(W) X 25(D) X 81(H)
Material : Epoxy
Weight : 15 kg
[Electrical Characteristic]
Insulation Resistance : 2,000 MΩ
Short Circuit Current : 100 kA/1s
Power Frequency Withstand Voltage (Dry) : 30 kV
Light Impulse Withstand Voltage (Dry) : 75 kV
[Mechanical Charateristic]
Heat Resistance : 155 ℃
Base Material : Epoxy
Tensile Stress (N/mm2) : 300
[Material & Shape]
Material : Al6063
Weight : 4.62 kg
[Electrical Characteristic]
Permissible Current : 3800 A
[Mechanical Charateristic]
Max Permissible Temp : 95 ℃
Coefficient of Thermal Expansion (AL) : 20 X 10-6/℃
[Material & Shape]
Material : Cast Iron
[Mechanical Charateristic]
Surface Coating : Hop dip Galvanizing
Yield Stress : More than 295 (N/mm2)
Tensile Strength : More than 620 (N/mm2)
Elongation : More than 9(%)
